Factory machined heat insulation spacer insulation washer

Home Productsinjection molding

Leading Global Injection Molding Supplier

Assist global clients in engineering material,professional custom injection molding service,CNC machining service.We can provide you with one-stop solutions.



Those plastics materials like UHMW-PE , MY Nylon , PA6 , POM , HDPE , ABS , PU , PC , PVC, PP , PET , PBT , Acrylic , PEEK , PPS , PTFE , PVDF , PAI , PEI , PSU , PI , PBI etc., they have different characteristic ! For example flowing temperature , crystallization speed , heat dispense , viscosity , pressure, speed , deformation and stripping .



Thanks for clients all along support , we gain lots of successful and failure cases , those experiences we store in database , which guide our new staff avoid same mistake. Today our comprehensive service from industrial design, mold design and manufacturing, volume production and production is based on an end-to-end quality assurance system that delivers an efficient, cost-saving, turnkey solution in plastic injection molding manufacturing.

3D Software Full Advanced Engineering Plastic Injection Moulding Design Services

Our mold team uses the lasted new version software design programs: UG, ProE, SolidWorks, Catia, Rhino etc., you can send any type of drawings xmt,step,vad or .iges. We also give you service is reverse engineering, we can follow your sample to create a completely new 3d drawings and the molds.



Our clients include medical industry, automobile, electronics industry, consume plastic products, etc., Our skilled technician and mould maker specialists work with each individual client and use the best material available for each application, Guides your project through each phase of development to save you time and money. We will explain whole process efficiently in five main stages: the production of the technical preparation stage, the preparation stage of raw materials, parts and components processing stage, assembly and commissioning phase trial identification stage. It is clear and confident to achieve success .

  • Factory machined heat insulation spacer insulation washer
  • Factory machined heat insulation spacer insulation washer
  • Factory machined heat insulation spacer insulation washer
  • Factory machined heat insulation spacer insulation washer
  • Factory machined heat insulation spacer insulation washer
向上
向下

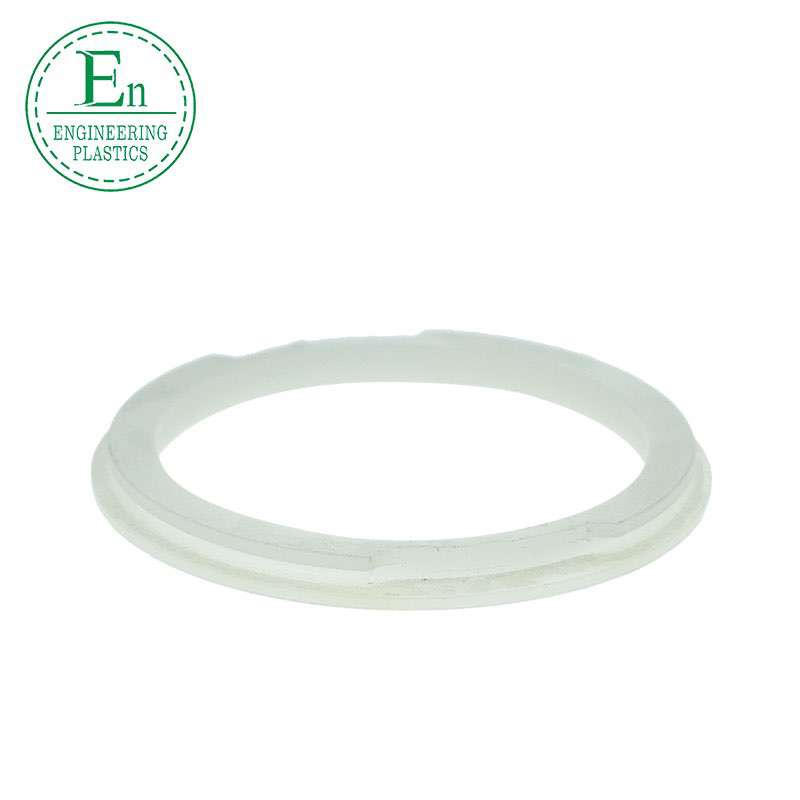

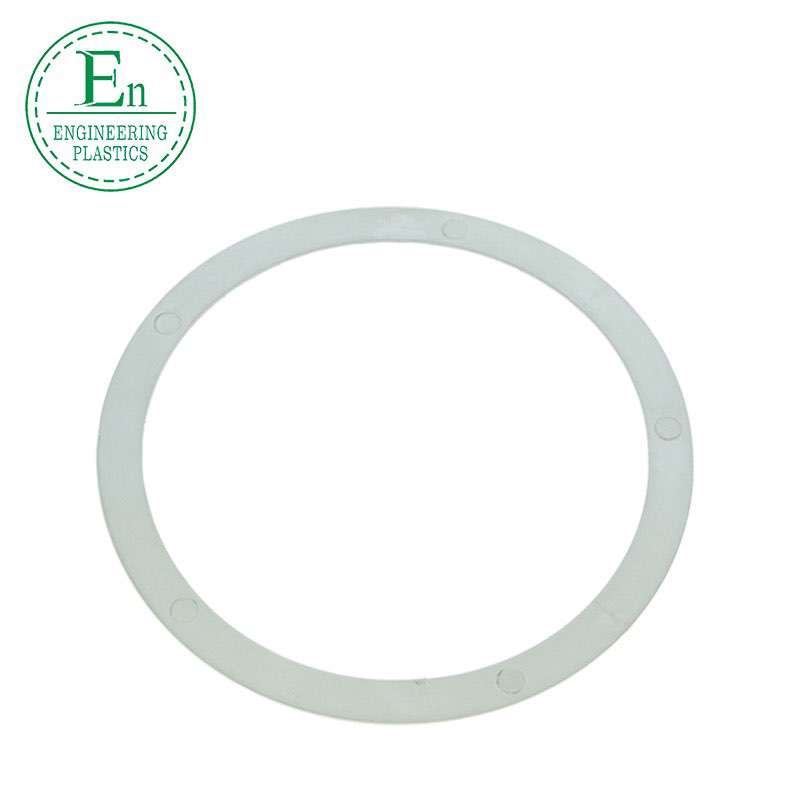

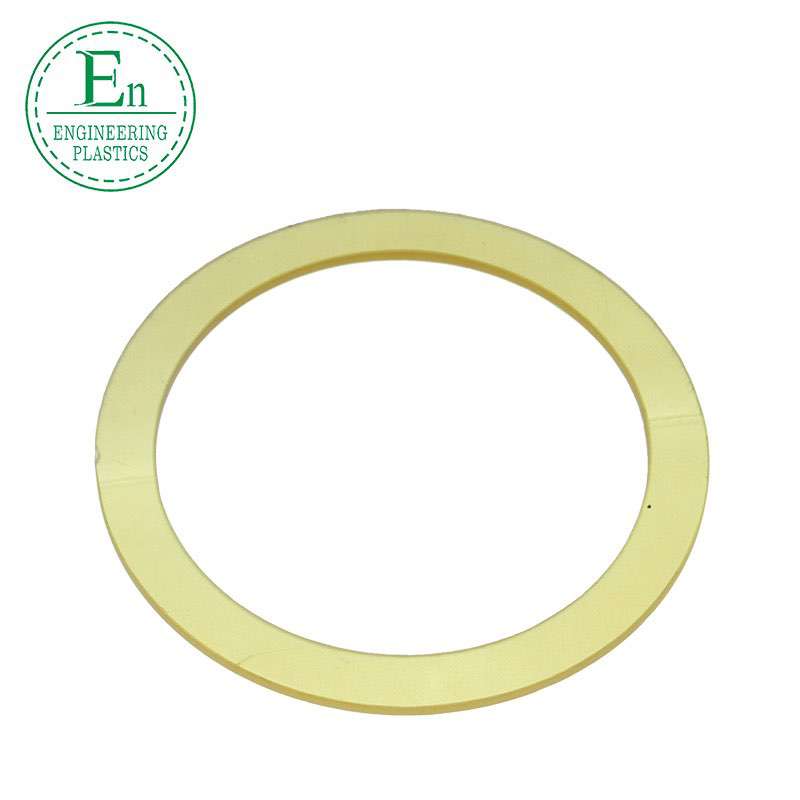

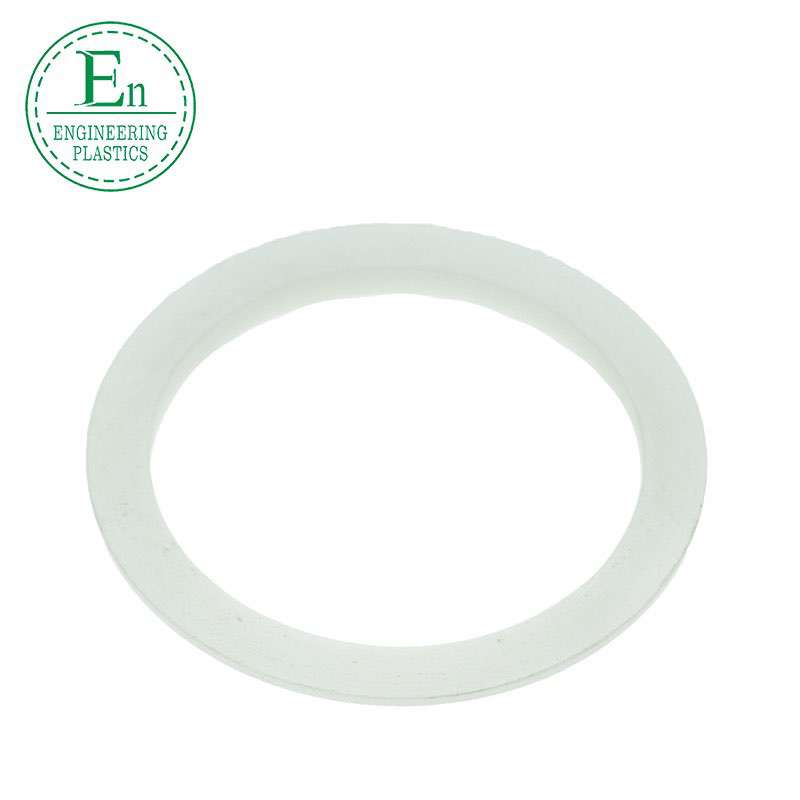

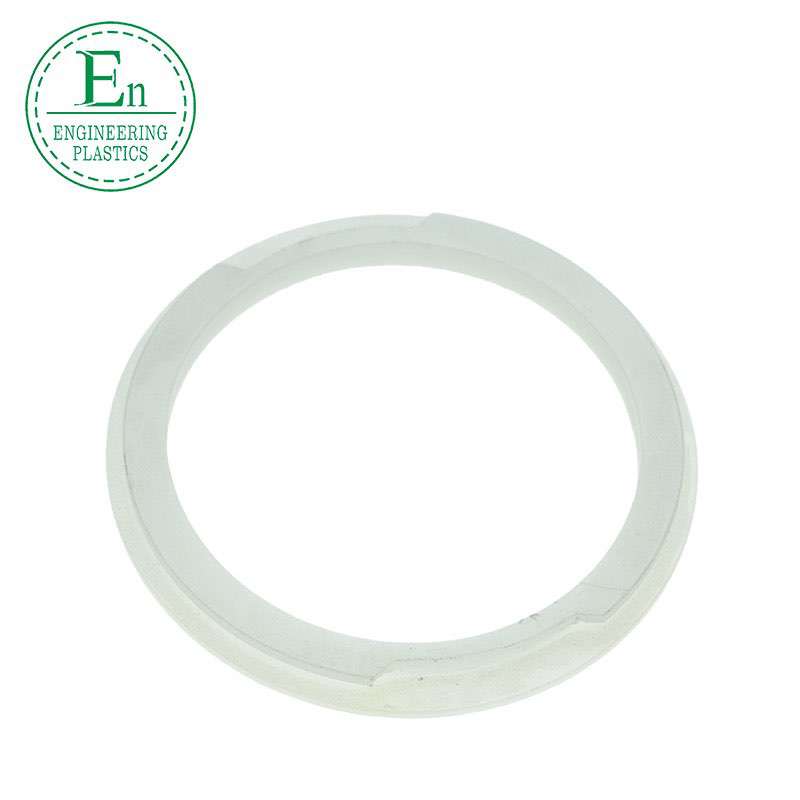

Factory machined heat insulation spacer insulation washer

  • Place of Origin|-|Guangdong, China (Mainland):

  • Brand Name|-|GZ engineering plastic:

  • Model Number|-|insulation washer:

  • Plastic Modling Type|-|Injection:

  • Name|-|insulation washer:

  • Color|-|white,black,green,nature,blue,yellow:

  • Product description:

    Factory machined heat insulation spacer insulation washer

Related Products:

Similar items

read more

  • Details

Factory machined heat insulation spacer insulation washer


Material analysis

insulation washer is made from high quality nylon raw material.

Nylon is a kind of engineering plastics used in comprehensive industries,has been applied almost every industrial field.The caprolactam monomer is first melted, and added catalyst, then poured it inside moulds at atmosphere pressure so as to shape in different castings, such as: rod, plate, tube.

Other casting Nylon:

Oil Nylon + Carbon (Black)

Oil Nylon added carbon, has the very compact and crystal structure, which is better than the general casting nylon in the performance of high mechanical strength, wear-resistance, anti-aging, UV resistance and so on. It is suitable for making the bearing and other wear mechanical parts.

Oil MC901(Blue)

This improved MC Nylon, has striking blue color, which is better than general PA6/PA66 in the performance of toughness, flexibility, fatigue-resistance and so on. It is the perfect material of gear, gear bar, transmission gear and so on.

MC Nylon + MSO2(Light black)

MC Nylon added MSO2 can remain the impact-resistance and fatigue-resistance of casting nylon, as well as it can improve the loading capacity and wear-resistance. It has a wide application in making gear, bearing, planet gear, seal

Properties for your reference

Item No.

Unit

MC Nylon (Natural)

Oil Nylon+Carbon (Black)

Oil Nylon(Green)

MC90 (Blue)

MCNylon+MSO2(Light Black)

Density

g/cm3

1.15

1.15

1.135

1.15

1.16

Water absorption (23 in air)

%

1.8-2.0

1.8-2.0

2

2.3

2.4

Tensile strength

MPa

89

75.3

70

81

78

Tensile strain at break

%

29

22.7

25

35

25

Compressive stress (at 2%nominal strain)

MPa

51

51

43

47

49

Charpy impact strength (unnotched)

KJ/m2

No brak

No break

≥50

No BK

No break

Charpy impact strength (notched)

KJ/m2

≥5.7

≥6.4

4

3.5

3.5

Tensile modulus of elasticity
