Ten years dedicated to custom engineering plastics parts manufacturers
nylon(pa6/pa66) sheet rod tube
Our manufacturers direct sales of different
specifications, sizes, colors

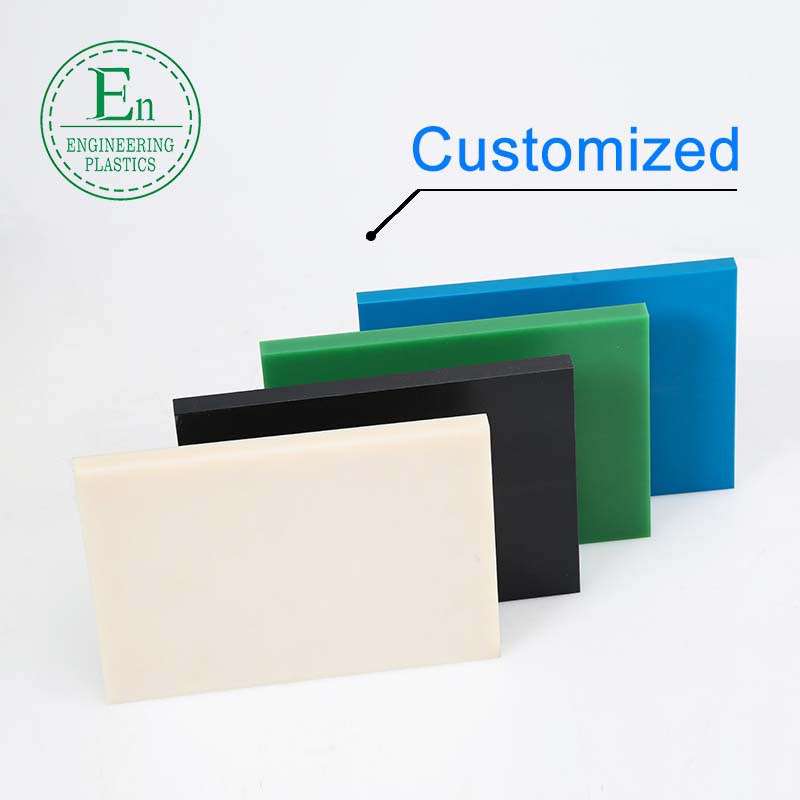

of the nylon sheet / nylon rod / nylon tubes.
pa66 / pa66gf25 / pa6gf30 / pa66gf33/ polyamide sheet rod tubes.
一、Common specifications include:
Color：Natural、White、Black、Green、Blue、Yellow、Rice Yellow、Gray and so on.
Rod Size: Φ10-Φ800X1000mm

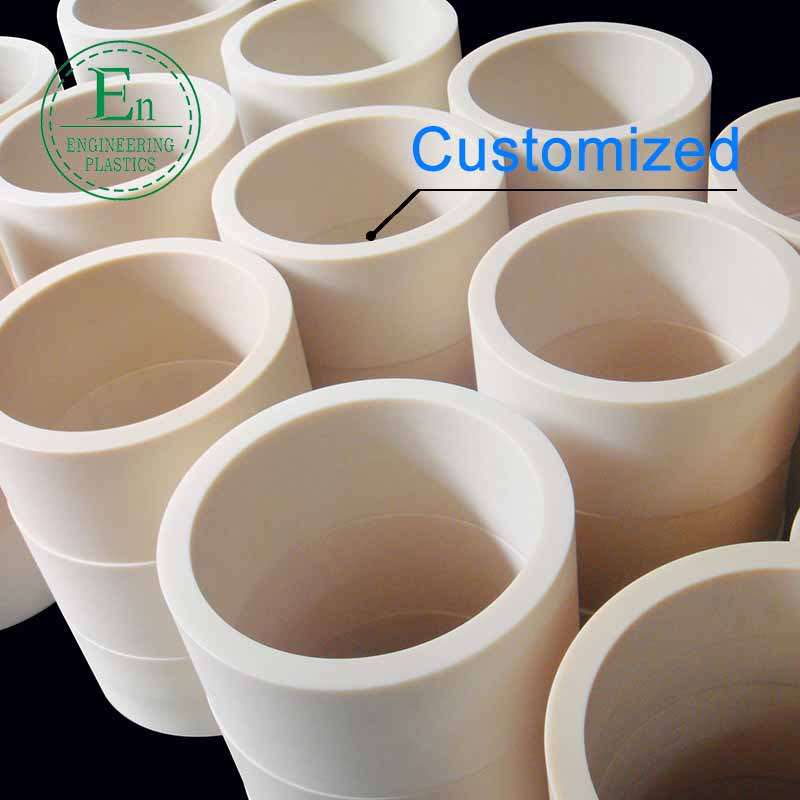

Tube Size: (OD)50-1800
X (ID)30-1600 X Length(500-1000mm)
Different specifications of nylon rod tube can
also be customized

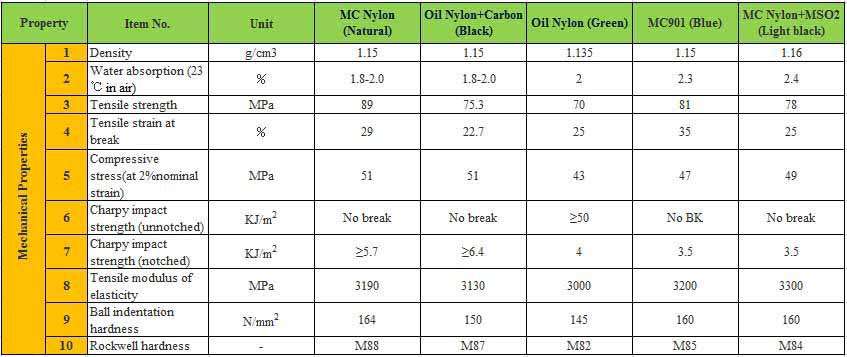

二、Main Properties of MC Nylon
三、Introduction of different
MC Nylon，means Monomer Casting Nylon, is a kind of engineering plastics used in
has been applied almost every industrial field.The caprolactam monomer is first melted, and added
then poured it inside moulds at atmosphere pressure so as to shape in
different castings, such as: rod, plate, tube.
The molecule weight of MC Nylon
can reach 70,000-100,000/mol, three times than PA6/PA66.
properties are much higher than other nylon materials, such as: PA6/PA66.
Nylon plays a more and more important role in the material list recommended by
Since the end of 1980’s, Guangzhou Engineering Plastics
Industireis Company has devoting herself on
developing the technology of MC
Nylon modification, greatly extended the applications in different industries.
Basing on the MC Nylon, reinforced with variety of additives during the
reaction, such as lubricant,
molybdenum disulfide, graphite glass fiber, carbon
fiber etc, to improve the properties,
higher performance of wear-resistance,
noise-absorption. At the same time, as the technics and
structure of the moulds
is quite simple, so that it can be manufactured in lower cost,
ideal substitutes of bronze, stainless steel, Babbitt alloy , PTFE and so on.

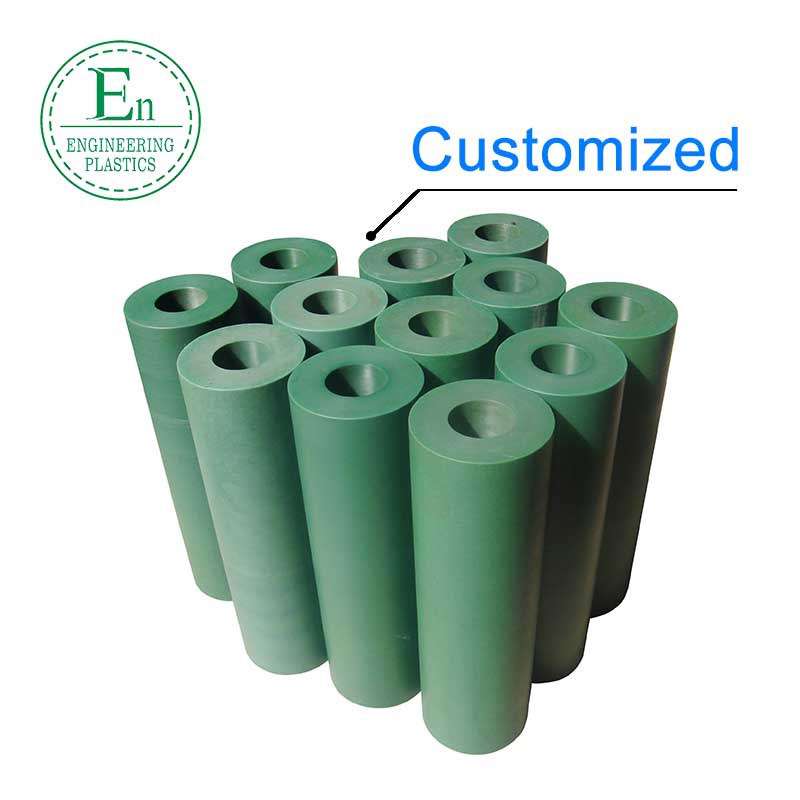

Oil Nylon（green）is the new engineering plastics that developed by Guangzhou Engineering
Plastics Industries Company
in the later 1990’s by importing the advanced technology from UK, was the
first authentic lubricating nylon that builds the liquid lubricant system
during the processing stage, which makes its coefficient of friction is 50%
lower than the general PA6 or PA66,
the wear-resistance is 10 times than the
general ones. Oil Nylon is specially developed for the parts of
heavy-loading and low-speed-running, which obviously
resulted in a substantial increase in bearing life—5 times that of general PA6
and 25 times that of phosphor bronze! The lubricant contained within the
material will not drain, adsorb or dry out and never needs replenishment. The
uniform distribution of the lubricant throughout the product guarantees the
constant performance of the parts over the whole service life and improvements
in rate of wear, sliding frictional properties, abrasion resistance and stick
slip performance, which are just a few of the benefits offered by this material.
Oil Nylon has been successful in considerable enlarging the application of
nylon in many industries and specifically for some un-lubricated running parts.

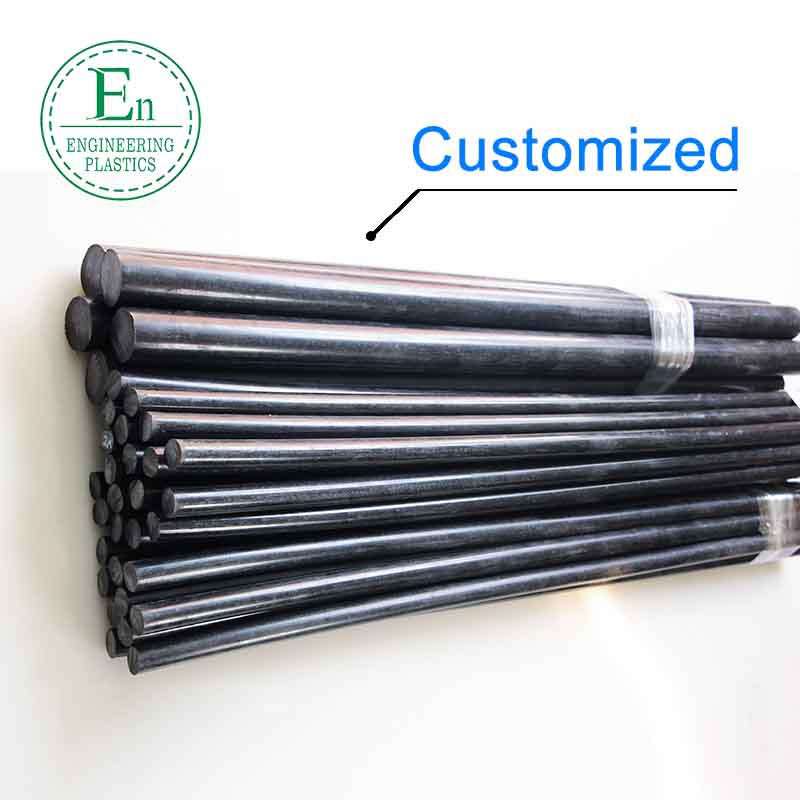

Oil Nylon + Carbon （Black）
Oil Nylon added carbon, has the very compact and
crystal structure, which is better than the general casting nylon in the
performance of high mechanical strength, wear-resistance, anti-aging, UV
resistance and so on. It is suitable for making the bearing and other wear
This improved MC Nylon, has striking blue color, which
is better than general PA6/PA66 in the performance of toughness, flexibility,
fatigue-resistance and so on. It is the perfect material of gear, gear bar,
transmission gear and so on.
5、MC Nylon + MSO2（Light black）
MC Nylon added MSO2 can remain the impact-resistance
and fatigue-resistance of casting nylon, as well as it can improve the loading
capacity and wear-resistance. It has a wide application in making gear,
bearing, planet gear, seal circle and so on.
